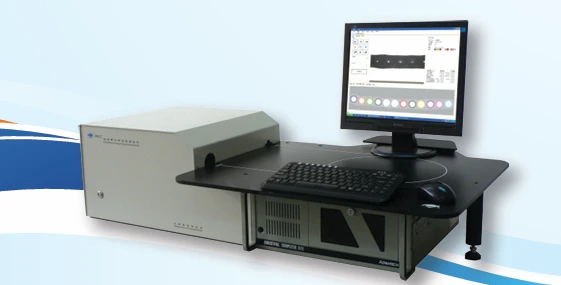

The OFM Optical Fiber Multi-parameter Measurement System is a high-precision testing system developed by the Shanghai Electric Cable Research Institute (SECRI) for comprehensive measurement of optical fiber characteristics. The system complies with IEC 60793 test methods and is designed for research, manufacturing, quality control, and application testing of optical fibers and optical cables. It measures multiple fiber parameters, including attenuation (ATT), mode field diameter (MFD), and cut-off wavelength (CW), providing fast, accurate, and reliable results.

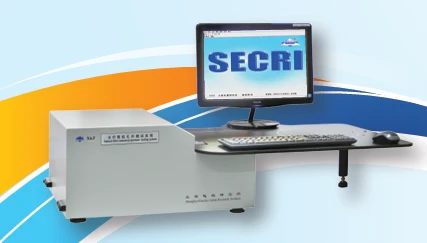

NA-F Optical Fiber Numerical Aperture Measurement System The NA-F Optical Fiber Numerical Aperture Measurement System is a high-precision instrument developed by the Shanghai Electric Cable Research Institute (SECRI) for measuring the numerical aperture (NA) of optical fibers. The system uses the far-field optical distribution method combined with digital phase-locked technology and advanced opto-mechanical-electronic integration to provide accurate and reliable numerical aperture measurements for optical fibers.

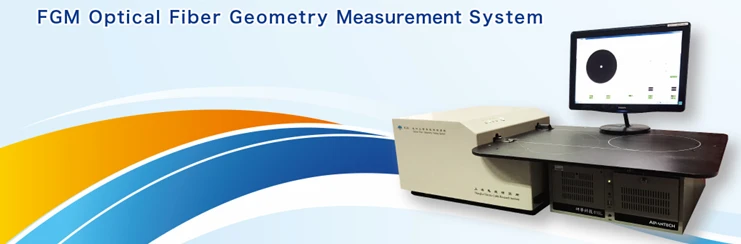

FGM Optical Fiber Geometry Measurement System The FGM Optical Fiber Geometry Measurement System is a high-precision automatic measurement system developed by the Shanghai Electric Cable Research Institute (SECRI) for measuring the geometric parameters of optical fibers. The system complies with the IEC 60793 test method and utilizes EIA/TIA FOTP 176 gray-scale calibration technology.
The ECTS-04 Economical Symmetrical Digital Cable Test System is a high-precision testing system developed by the Shanghai Electric Cable Research Institute (SECRI) for evaluating the performance of 4-pair high-performance symmetrical digital communication cables, including CAT5, CAT5e, and CAT6 cables. The system provides a reliable and cost-effective solution for communication cable testing in manufacturing, quality control, and laboratory environments.

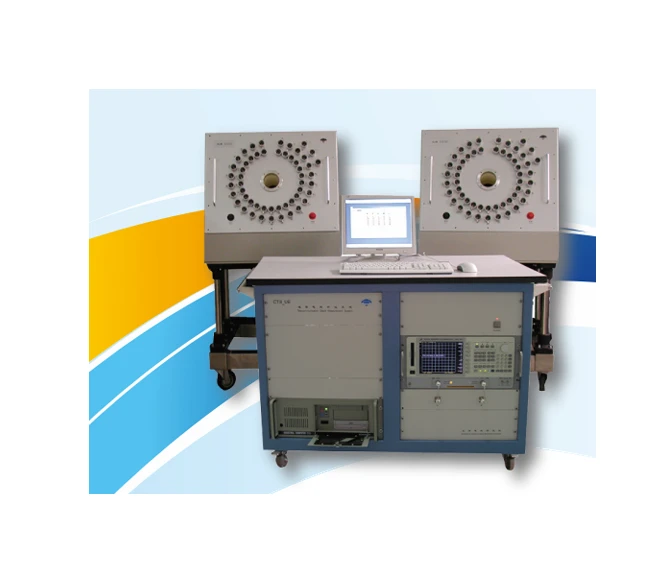

CTS-UE Communication Cable Measurement System The CTS-UE Communication Cable Measurement System, developed by the Shanghai Electric Cable Research Institute (SECRI), is a high-precision automatic measurement system designed for testing the electrical parameters of communication cables. The system complies with IEC 60708, YD/T 322-1996, and YD/T 837.1–837.2-1996, ensuring reliable and standards-compliant cable testing. It supports testing of up to 50 cable pairs with a measurement frequency range of 100 kHz to 4 MHz.

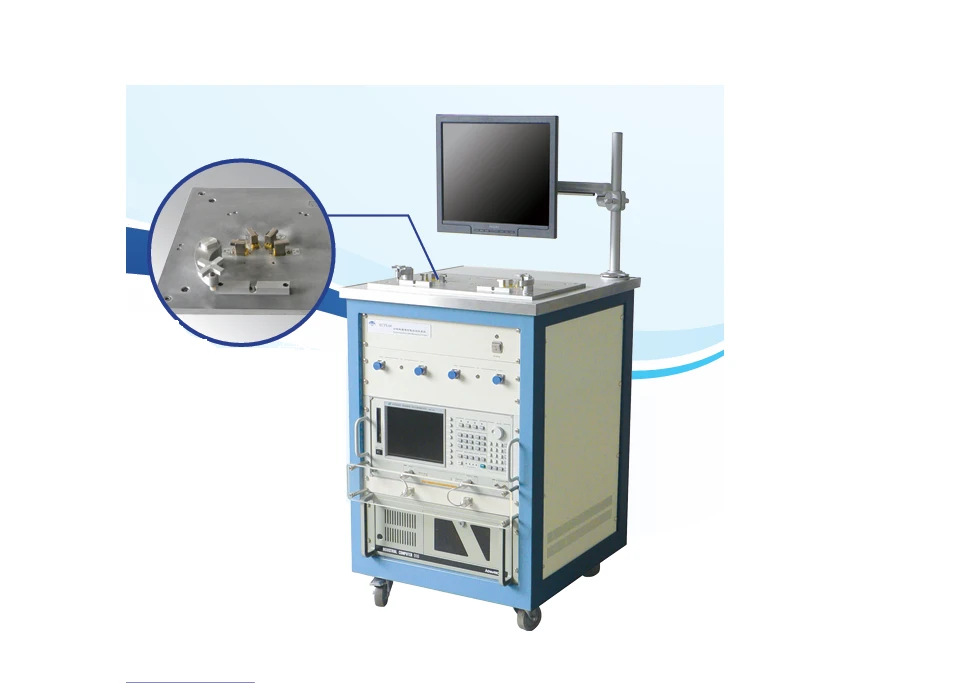

CTS-HEAC test technology solution is applicable for testing and evaluating the transmission performance of the high-frequency high-speed cable and assembly test up to 20 (40) GHz. Quick test in frequency domain (NA) parameters and time domain (TDR) parameters can be completed on the same test fixtures, it applies different test specifications, provides detailed test guides in the test, be compatible with multiple NA and TDR, and provides customized service. Using a switch matrix, up to 64 channels of fully automatic testing can be achieved. Applicable scope：USB, HDMI, SATA, SFP, QSFP and other high-frequency high-speed cables and assemblies. Standards：Cable @20 (40) GHz, assembly@ specification. Test channel: Channel 1-8 (Cable) / Channel 1-64(assembly) Testing Parameters:Attenuation, return loss, differential mode to common mode conversion, near end crosstalk, far end crosstalk, time domain impedance, differential impedance, inter-pair skew and intra-pair skew

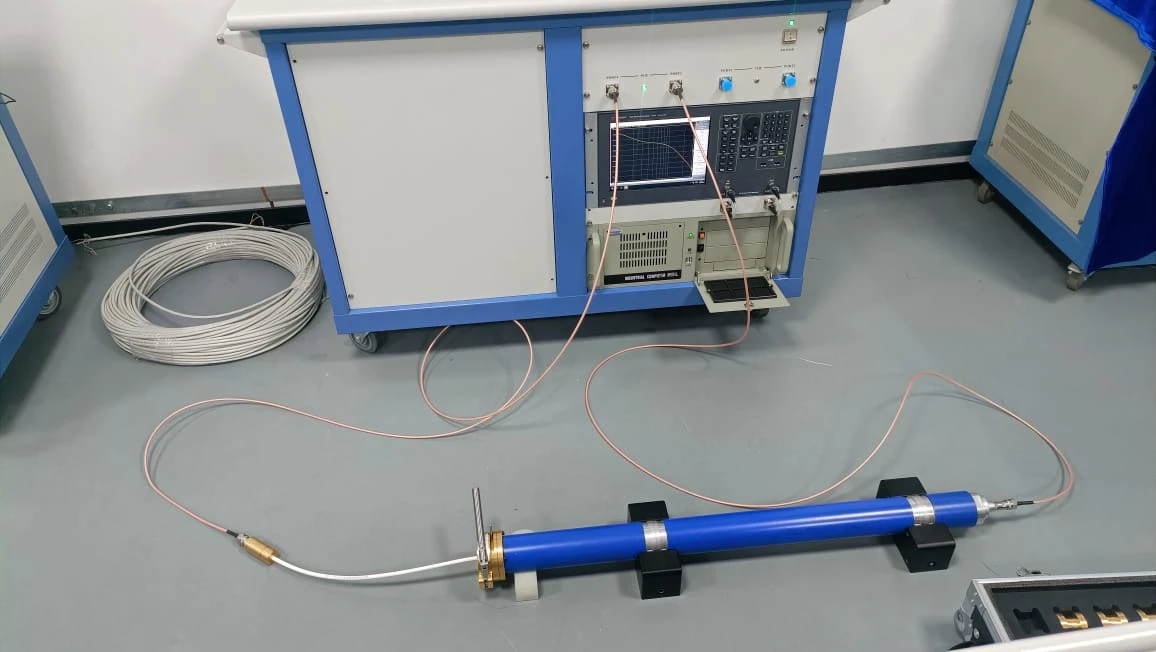

Metallic cable and assembly electromagnetic compatibility test technology solution is applicable for EMC (electromagnetic compatibility) performance assessment and measurement (including transfer impedance, screen ing attenuation, coupling attenuation) of communication cable, control cable or other special cable and assembly (by using tri-axial tube technology). Provide different test schemes and test equipment according to the applica tion scenarios of the device under test. The test technology meets most of the existing standards at home and abroad and provides specialized design services for customers. Device Under Test: metallic communication cables, power cables, screened automotive cables, control and signal cables, cable assemblies, etc. Standards: IEC 62153, TIA/EIA568 ,EN 50289,IEEE 802.3,ORCN,ALLIANCE , GB/T 17737/18015/25087/31723, YD/T1019, QC/T 1037, etc.
ISG provides automatic test solution for geometrical parameters of cable insula tion and sheath. ISG is a specialized high-precision instrument for realizing thickness and bound ary dimension testing of optical fiber/cable insulation and sheath. Applicable standards: IEC60811-1-1, GB/T2951.11, GB/T5013, GB/T5023, etc.
CTS-BAL provides an economic symmetrical digital cable test solution. The customer can achieve the testing of a 1-pair cable automati cally or up to 4-pair cable testing semi-automatically through the SECRI software (option), and output the test report. ● Impedance: 50:77Ω, 50:100Ω, 50:120Ω, 50:150Ω or customization.
